標題: 請問 我的ISE工程生成了TESTBENCH文件用modelsim仿真的時候只能出來一個周期 [打印本頁]

作者: lazy17362012 時間: 2017-11-13 20:44
標題: 請問 我的ISE工程生成了TESTBENCH文件用modelsim仿真的時候只能出來一個周期

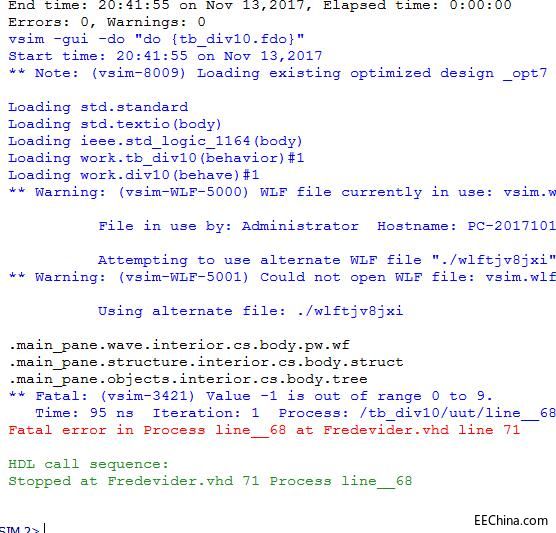

我ISE的工程生成了TESTBENCH文件用modelsim仿真的時候只能出來一個周期不知道是代碼的問題還是設置的問題下面附上工程代碼和tb代碼
library ieee;
use ieee.std_logic_1164.all;
entity div10 is
   generic(n:integer :=10);
   port (clk:in std_logic;
            q

ut std_logic);
end div10;
architecture behave of div10 is
signal count :integer range n-1 downto 0:=n-1;
begin
process(clk)
begin
      if (clk'event and clk='1' and clk'last_value ='0') then
      count<=count-1;
         if count>= n/2 then
            q<='0';
         else
            q<='1';
         end if;
         if count<=0 then
            count<=n-1;
         end if;
      end if;
   end process;
end behave;

ENTITY tb_div10 IS
END tb_div10;

ARCHITECTURE behavior OF tb_div10 IS

-- Component Declaration for the Unit Under Test (UUT)

COMPONENT div10
PORT(
      clk : IN  std_logic;
      q : OUT  std_logic
      );
END COMPONENT;

--Inputs
signal clk : std_logic := '0';

--Outputs
signal q : std_logic;

-- Clock period definitions
constant clk_period : time := 10 ns;

BEGIN

-- Instantiate the Unit Under Test (UUT)
uut: div10 PORT MAP (
      clk => clk,
      q => q
      );

-- Clock process definitions
clk_process :process
begin
clk <= '0';
wait for clk_period/2;
clk <= '1';
wait for clk_period/2;
end process;

-- Stimulus process
stim_proc: process
begin
   -- hold reset state for 100 ns.
   wait for 100 ns;

   wait for clk_period*10;

   -- insert stimulus here

   wait;
end process;

END;
