標題: DR6018C V01 wifi6 Qualcomm IPQ6010 IPQ6018 openwrt 802.11ax QCN9074/QCN9024 [打印本頁]

作者: wallyswifi 時間: 2022-8-24 11:44

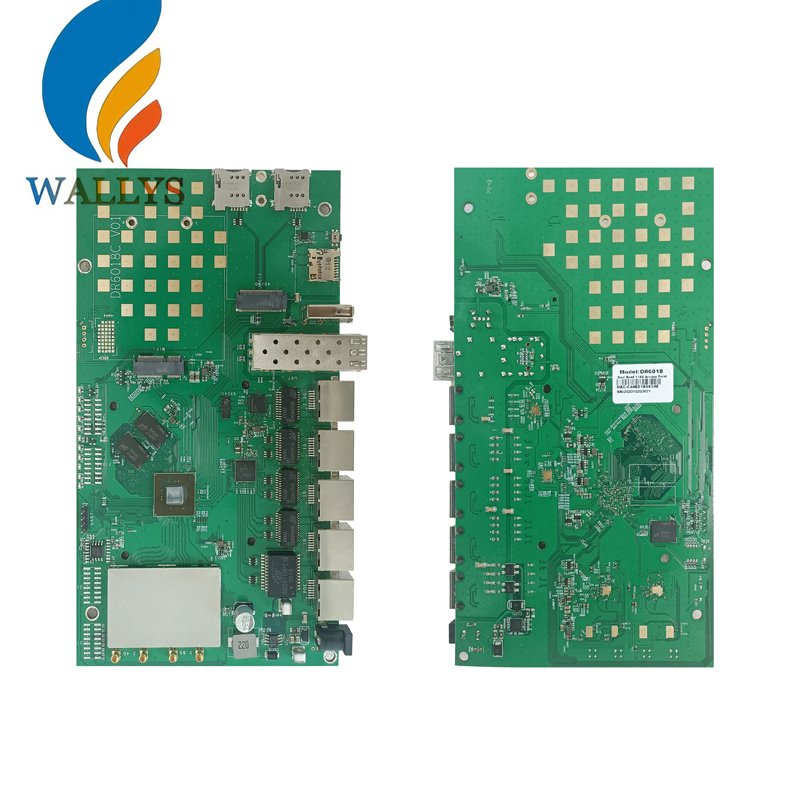

標題: DR6018C V01 wifi6 Qualcomm IPQ6010 IPQ6018 openwrt 802.11ax QCN9074/QCN9024

MT7915/MT7975/IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/IPQ4018/IPQ4028/IPQ8072/IPQ8072A/IPQ8074/IPQ8074A/IQCN6024/QCN9074/QCN9072/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882/AR9582/AR9531/AR9344 /AR9342/AX200NGW/QCA9531

Enhanced security operations such as physical security and surveillance analytics are required by almost all industries, including banking, retail, critical infrastructure, government, corporate, education and public transportation. Such security measures provide real-time intelligence for live detection of safety and security events and are instrumental not only in safeguarding business intelligence but also in facilitating efficient workforce management and optimizing operational decisions.

EMAIL:sales@wallystech.com

WEB:https://www.wallystech.com/

Qualcomm-Atheros IPQ6010
Quad-core ARM 64bit A53 @1.8GHz Processor
1GB DDRL3L System Memory
32MB NOR Flash, 256MB NAND Flash
Supports Dynamic Frequency Selection (DFS)
2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate
2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate
Support: QUECTEL RM500Q-GL
Support: QCN9074 WiFi 6E Card

Absolute Maximum Rating

Parameter	Rating	Unit
Supply Voltage	24V~48	V
Operating Temperature Range	-40 to +70	oC
Storage Temperature Range	-45 to +105	oC
Operating Humidity Range	5 to +95 (non-condensing)	%

Hardware Specifications

Symbol	Parameter
CPU	Qualcomm-Atheros IPQ6010
CPU Frequency	Quad-core ARM 64 bit A53 @1.8 GHz processor
System Memory	1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design
Ethernet Port	1 x 1Gbps Ethernet Ports & POE3 x 1Gbps Ethernet Ports , 1x 2.5Gbps Ethernet Port
SFP Port	1x SFP port
NGFF Slot	M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0
SD Card Slot	1x SD Card Slot
USB /header	1x USB 2.0 Port
POE	24V~48V passive POE/Active POE(Suport 802.3bt)
DC Jack	24V power supply
LED header	FFC/FPC Connector
Serial Port	1x Serial Port 4 Pin Connector
Wireless	On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain 4 x MMCX Connectors
Bluetooth	CSR8811 BLE 4.2
Nor Flash	32MB
Nand Flash	256MB
DDR	256MB~512MB
Dimension	185mm x 116mm

Radio TX Specifications(5180MHz-5825MHz)

Operating Mode	Data Rate	Power		Tolerance
Operating Mode	Data Rate	1 Chain	2 Chains	Tolerance
5Ghz 802.11ax HE20	MCS0	20dBm	23dbm	±2dB
	MCS1	20dBm	23dBm	±2dB
	MCS2	20dBm	23dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	19dBm	22dBm	±2dB
	MCS5	18dBm	21dBm	±2dB
	MCS6	17dBm	20dBm	±2dB
	MCS7	16dBm	19dBm	±2dB
	MCS8	15dBm	18dBm	±2dB
	MCS9	14dBm	17dBm	±2dB
	MCS10	13dBm	16dBm	±2dB
	MCS11	13dBm	16dbm	±2dB
5Ghz 802.11ax HE400	MCS0	20dBm	23dbm	±2dB
	MCS1	20dBm	23dBm	±2dB
	MCS2	20dBm	23dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	19dBm	22dBm	±2dB
	MCS5	18dBm	21dBm	±2dB
	MCS6	17dBm	20dBm	±2dB
	MCS7	16dBm	19dBm	±2dB
	MCS8	15dBm	18dBm	±2dB
	MCS9	14dBm	17dBm	±2dB
	MCS10	13dBm	16dBm	±2dB
	MCS11	13dBm	16dbm	±2dB
5Ghz 802.11ax HE80	MCS0	20dBm	23dbm	±2dB
	MCS1	20dBm	23dBm	±2dB
	MCS2	20dBm	23dBm	±2dB
	MCS3	20dBm	23dBm	±2dB
	MCS4	19dBm	22dBm	±2dB
	MCS5	18dBm	21dBm	±2dB
	MCS6	17dBm	20dBm	±2dB
	MCS7	16dBm	19dBm	±2dB
	MCS8	15dBm	18dBm	±2dB
	MCS9	14dBm	17dBm	±2dB
	MCS10	13dBm	16dBm	±2dB
	MCS11	13dBm	16dbm	±2dB
